Air System Components

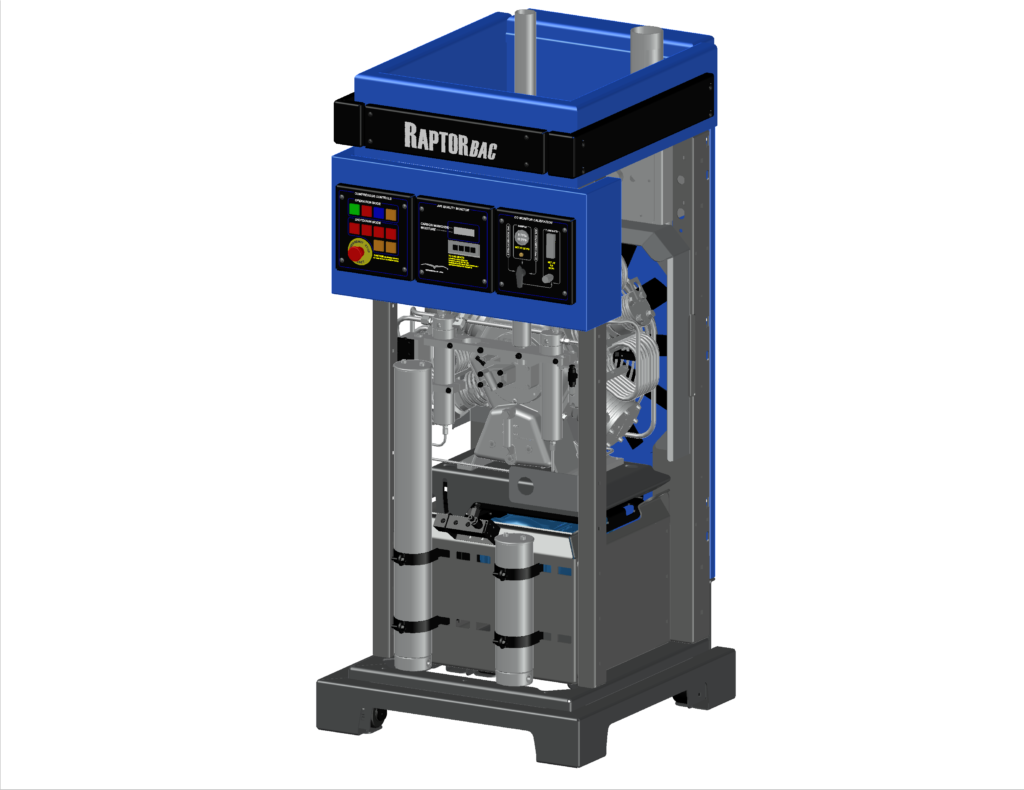

RaptorBAC

Careful attention to detail makes the RaptorBAC a highly efficient and easy-to-use unit. Graphic technology makes it easy to monitor compressor performance, and our advanced design maintains the ideal operating environment for enhanced safety.

EagleAir-095 copy

ModelCFM* (LPM)HPPSIG (BAR)Weight Lbs. (kg)
RCA05C5.8 (164)
55000 (345)1350 (612.3)
RCA08C8.6 (224)
7.55000 (345)1355 (614.6)
RCA08F9.5 (269)
7.56000 (414)1395 (632.8)
RCA10F14.0 (396)106000 (414)1415 (641.8)

DIMENSIONS: 66″H x 34.5″W x 32″D (max) (167.6cm x 87.6cm x 81.2cm)
*Charging rate based on filling an 80 CF cylinder from ambient to the maximum working pressure shown.

For a guide on selecting a model for your application check out our Air System Calculator.
